Space of scalar valued finite element functions on a hybrid 2D mesh More...

#include <lf/uscalfe/uscalfe.h>

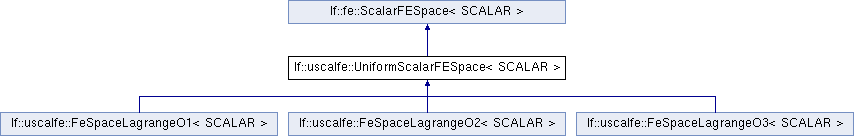

Inheritance diagram for lf::uscalfe::UniformScalarFESpace< SCALAR >:

Public Types
using	Scalar = SCALAR

Public Types inherited from lf::fe::ScalarFESpace< SCALAR >
using	Scalar = SCALAR

Public Member Functions
	UniformScalarFESpace (const UniformScalarFESpace &)=delete

	UniformScalarFESpace (UniformScalarFESpace &&) noexcept=default

UniformScalarFESpace &	operator= (const UniformScalarFESpace &)=delete

UniformScalarFESpace &	operator= (UniformScalarFESpace &&) noexcept=default

	UniformScalarFESpace (std::shared_ptr< const lf::mesh::Mesh > mesh_p, std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > > rfs_tria_p, std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > > rfs_quad_p, std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > > rfs_edge_p=nullptr, std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > > rfs_point_p=nullptr)
	Main constructor: sets up the local-to-global index mapping (dof handler) More...

std::shared_ptr< const lf::mesh::Mesh >	Mesh () const override
	access to underlying mesh More...

const lf::assemble::DofHandler &	LocGlobMap () const override
	access to associated local-to-global map More...

lf::fe::ScalarReferenceFiniteElement< SCALAR > const *	ShapeFunctionLayout (const lf::mesh::Entity &entity) const override
	access to shape function layout for cells More...

lf::fe::ScalarReferenceFiniteElement< SCALAR > const *	ShapeFunctionLayout (lf::base::RefEl ref_el_type) const
	access to shape function layout for cells More...

size_type	NumRefShapeFunctions (const lf::mesh::Entity &entity) const override
	number of interior shape functions associated to entities of various types More...

size_type	NumRefShapeFunctions (lf::base::RefEl ref_el_type) const
	number of interior shape functions associated to entities of various types More...

	~UniformScalarFESpace () override=default
	No special destructor. More...

Public Member Functions inherited from lf::fe::ScalarFESpace< SCALAR >
virtual std::shared_ptr< const lf::mesh::Mesh >	Mesh () const =0
	acess to underlying mesh More...

virtual const lf::assemble::DofHandler &	LocGlobMap () const =0
	access to associated local-to-global map More...

virtual ScalarReferenceFiniteElement< SCALAR > const *	ShapeFunctionLayout (const lf::mesh::Entity &entity) const =0
	access to shape function layout for mesh entities More...

virtual size_type	NumRefShapeFunctions (const lf::mesh::Entity &entity) const =0
	number of interior shape functions associated to a particular mesh entity. More...

virtual	~ScalarFESpace ()=default
	No special destructor. More...

Private Member Functions
assemble::UniformFEDofHandler	InitDofHandler (std::shared_ptr< const lf::mesh::Mesh > mesh_p)

bool	check_ptr () const

Private Attributes
std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_tria_p_

std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_quad_p_

std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_edge_p_

std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_point_p_

size_type	num_rsf_node_ {0}

size_type	num_rsf_edge_ {0}

size_type	num_rsf_tria_ {0}

size_type	num_rsf_quad_ {0}

assemble::UniformFEDofHandler	dofh_

Related Functions
(Note that these are not member functions.)
template<class SCALAR >
void	PrintInfo (std::ostream &o, const UniformScalarFESpace< SCALAR > &fes, unsigned int ctrl=0)
	Print information about a UniformScalarFESpace to the given stream object. More...

template<typename SCALAR >
std::ostream &	operator<< (std::ostream &o, const UniformScalarFESpace< SCALAR > &fes)
	output operator for scalar parametric finite element space More...

Additional Inherited Members
Protected Member Functions inherited from lf::fe::ScalarFESpace< SCALAR >
	ScalarFESpace ()=default
	default constructor, needed by std::vector More...

	ScalarFESpace (const ScalarFESpace &)=default

	ScalarFESpace (ScalarFESpace &&) noexcept=default

ScalarFESpace &	operator= (const ScalarFESpace &)=default

ScalarFESpace &	operator= (ScalarFESpace &&) noexcept=default

Detailed Description

template<typename SCALAR>
class lf::uscalfe::UniformScalarFESpace< SCALAR >

Space of scalar valued finite element functions on a hybrid 2D mesh

Template Parameters

SCALAR underlying scalar type, usually either double or complex<double>

The abstract concept of a (parametric) finite element space involves

an underlying mesh
the definition of a local set of shape functions for every cell. This class is restricted to parametric finite element spaces featuring the same set of reference shape functions for every cell of a particular topological type. This is indicated by the attribute Uniform in the class name, cf., the class lf::assemble::UniformFEDofHandler.

This class just contains (pointers to) objects representing the various building blocks of a finite element space. It does not offer elaborate methods.

Note: Some of the pointers may be NULL. For instance, if all computations are done on purely triangular meshes then a finite element specification for quadrilaterals need not be given.

This class is covered in \lref{par:fespace}.

Definition at line 50 of file uniform_scalar_fe_space.h.

Member Typedef Documentation

◆ Scalar

template<typename SCALAR >

using lf::uscalfe::UniformScalarFESpace< SCALAR >::Scalar = SCALAR

Definition at line 52 of file uniform_scalar_fe_space.h.

Constructor & Destructor Documentation

◆ UniformScalarFESpace() [1/3]

template<typename SCALAR >

lf::uscalfe::UniformScalarFESpace< SCALAR >::UniformScalarFESpace ( const UniformScalarFESpace< SCALAR > & )

delete

◆ UniformScalarFESpace() [2/3]

template<typename SCALAR >

lf::uscalfe::UniformScalarFESpace< SCALAR >::UniformScalarFESpace ( UniformScalarFESpace< SCALAR > && )

defaultnoexcept

◆ UniformScalarFESpace() [3/3]

template<typename SCALAR >

lf::uscalfe::UniformScalarFESpace< SCALAR >::UniformScalarFESpace	(	std::shared_ptr< const lf::mesh::Mesh >	mesh_p,
		std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_tria_p,
		std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_quad_p,
		std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_edge_p = `nullptr`,
		std::shared_ptr< const lf::fe::ScalarReferenceFiniteElement< SCALAR > >	rfs_point_p = `nullptr`
	)

inline

Main constructor: sets up the local-to-global index mapping (dof handler)

Parameters

mesh_p	shared pointer to underlying mesh (immutable)
rfs_tria_p	shared pointer to layout description for reference shape functions on triangular cells
rfs_quad_p	shared pointer to layout description for reference shape functions on quadrilateral cells
rfs_edge_p	shared pointer to layout description for reference shape functions on the edges
rfs_point_p	shared pointer to layout description for reference shape functions on the edges

The schemes for local shape have to satisfy certain compatibility conditions:

nodes may carry at most one local/global shape function
The number of interior shape functions for edges of triangles and quadrilaterals must agree.

Note: none of the shape function layouts needs to be specified; just pass a null pointer. This will then restrict the applicability of the resulting finite element space objects to particular meshes.

Definition at line 82 of file uniform_scalar_fe_space.h.

◆ ~UniformScalarFESpace()

template<typename SCALAR >

lf::uscalfe::UniformScalarFESpace< SCALAR >::~UniformScalarFESpace ( )

overridedefault

No special destructor.

Member Function Documentation

◆ check_ptr()

template<typename SCALAR >

bool lf::uscalfe::UniformScalarFESpace< SCALAR >::check_ptr ( ) const

inlineprivate

Checks whether some pointer are not valid

Definition at line 174 of file uniform_scalar_fe_space.h.

References lf::uscalfe::UniformScalarFESpace< SCALAR >::Mesh(), and lf::uscalfe::UniformScalarFESpace< SCALAR >::rfs_quad_p_.

◆ InitDofHandler()

template<typename SCALAR >

assemble::UniformFEDofHandler lf::uscalfe::UniformScalarFESpace< SCALAR >::InitDofHandler ( std::shared_ptr< const lf::mesh::Mesh > mesh_p )

private

Initialization of class member variables and consistency checks

Definition at line 240 of file uniform_scalar_fe_space.h.

References lf::base::RefEl::kPoint(), lf::base::RefEl::kQuad(), lf::base::RefEl::kSegment(), and lf::base::RefEl::kTria().

◆ LocGlobMap()

template<typename SCALAR >

const lf::assemble::DofHandler & lf::uscalfe::UniformScalarFESpace< SCALAR >::LocGlobMap ( ) const

inlineoverridevirtual

access to associated local-to-global map

Returns: a reference to the lf::assemble::DofHandler object (immutable)

Implements lf::fe::ScalarFESpace< SCALAR >.

Definition at line 109 of file uniform_scalar_fe_space.h.

References lf::uscalfe::UniformScalarFESpace< SCALAR >::dofh_, and lf::uscalfe::UniformScalarFESpace< SCALAR >::Mesh().

Referenced by lf::uscalfe::PrintInfo().

◆ Mesh()

template<typename SCALAR >

std::shared_ptr< const lf::mesh::Mesh > lf::uscalfe::UniformScalarFESpace< SCALAR >::Mesh ( ) const

inlineoverridevirtual

access to underlying mesh

Returns: a shared pointer to the mesh

Implements lf::fe::ScalarFESpace< SCALAR >.

Definition at line 102 of file uniform_scalar_fe_space.h.

References lf::uscalfe::UniformScalarFESpace< SCALAR >::dofh_, and lf::assemble::UniformFEDofHandler::Mesh().

Referenced by lf::uscalfe::UniformScalarFESpace< SCALAR >::check_ptr(), lf::uscalfe::UniformScalarFESpace< SCALAR >::LocGlobMap(), and lf::uscalfe::PrintInfo().

◆ NumRefShapeFunctions() [1/2]

template<typename SCALAR >

size_type lf::uscalfe::UniformScalarFESpace< SCALAR >::NumRefShapeFunctions ( const lf::mesh::Entity & entity ) const

overridevirtual

number of interior shape functions associated to entities of various types

Implements lf::fe::ScalarFESpace< SCALAR >.

Definition at line 383 of file uniform_scalar_fe_space.h.

References lf::mesh::Entity::RefEl().

Referenced by lf::uscalfe::PrintInfo().

◆ NumRefShapeFunctions() [2/2]

template<typename SCALAR >

size_type lf::uscalfe::UniformScalarFESpace< SCALAR >::NumRefShapeFunctions ( lf::base::RefEl ref_el_type ) const

number of interior shape functions associated to entities of various types

Definition at line 391 of file uniform_scalar_fe_space.h.

References lf::base::RefEl::kPoint(), lf::base::RefEl::kQuad(), lf::base::RefEl::kSegment(), and lf::base::RefEl::kTria().

◆ operator=() [1/2]

template<typename SCALAR >

UniformScalarFESpace & lf::uscalfe::UniformScalarFESpace< SCALAR >::operator= ( const UniformScalarFESpace< SCALAR > & )

delete

◆ operator=() [2/2]

template<typename SCALAR >

UniformScalarFESpace & lf::uscalfe::UniformScalarFESpace< SCALAR >::operator= ( UniformScalarFESpace< SCALAR > && )

defaultnoexcept

◆ ShapeFunctionLayout() [1/2]

template<typename SCALAR >

lf::fe::ScalarReferenceFiniteElement< SCALAR > const * lf::uscalfe::UniformScalarFESpace< SCALAR >::ShapeFunctionLayout ( const lf::mesh::Entity & entity ) const

overridevirtual

access to shape function layout for cells

access to shape function layout for mesh entities

Parameters

entity The entity to get the reference element for

Warning: NULL pointers may be returned by this method in case a finite element specification was not given for a particular topological type of entity.

Note: The returned ShapeFunctionLayout pointer will remain for the entire lifetime of the owning ScalarFESpace.

See also: ScalarReferenceFiniteElement

Implements lf::fe::ScalarFESpace< SCALAR >.

Definition at line 343 of file uniform_scalar_fe_space.h.

References lf::mesh::Entity::RefEl().

◆ ShapeFunctionLayout() [2/2]

template<typename SCALAR >

lf::fe::ScalarReferenceFiniteElement< SCALAR > const * lf::uscalfe::UniformScalarFESpace< SCALAR >::ShapeFunctionLayout ( lf::base::RefEl ref_el_type ) const

access to shape function layout for cells

Parameters

ref_el_type type of entit, can be anything except for lf::base::RefEl::kPoint()

Warning: NULL pointers may be returned by this method in case a finite element specification was not given for a particular topological type of entity.

Note: The returned ShapeFunctionLayout pointer will remain for the entire lifetime of the owning ScalarFESpace

Definition at line 350 of file uniform_scalar_fe_space.h.

References lf::base::RefEl::kPoint(), lf::base::RefEl::kQuad(), lf::base::RefEl::kSegment(), and lf::base::RefEl::kTria().

Friends And Related Function Documentation

◆ operator<<()

template<typename SCALAR >

std::ostream & operator<<	(	std::ostream &	o,
		const UniformScalarFESpace< SCALAR > &	fes
	)

Definition at line 442 of file uniform_scalar_fe_space.h.

References lf::uscalfe::UniformScalarFESpace< SCALAR >::PrintInfo().

◆ PrintInfo()

template<class SCALAR >

void PrintInfo	(	std::ostream &	o,
		const UniformScalarFESpace< SCALAR > &	fes,
		unsigned int	ctrl = `0`
	)

Parameters

o	The stream to which we should print
fes	The UniformScalarFESpace that should be printed.
ctrl	Controls the level of output:

Level of output:

if ctrl & kUniformScalarFESpaceOutMesh, mesh information will be printed.
if ctrl & kUniformScalarFESpaceOutDofh, information about the dof handler will be printed.
if ctrl & kUniformScalarFESpaceOutRsfs, information about the reference shape functions will be printed.

Referenced by lf::uscalfe::UniformScalarFESpace< SCALAR >::operator<<().

Member Data Documentation

◆ dofh_

template<typename SCALAR >

assemble::UniformFEDofHandler lf::uscalfe::UniformScalarFESpace< SCALAR >::dofh_

private

Local-to-global index map for the finite element space

Definition at line 168 of file uniform_scalar_fe_space.h.

Referenced by lf::uscalfe::UniformScalarFESpace< SCALAR >::LocGlobMap(), and lf::uscalfe::UniformScalarFESpace< SCALAR >::Mesh().

◆ num_rsf_edge_

template<typename SCALAR >

size_type lf::uscalfe::UniformScalarFESpace< SCALAR >::num_rsf_edge_ {0}

private

Definition at line 164 of file uniform_scalar_fe_space.h.

◆ num_rsf_node_

template<typename SCALAR >

size_type lf::uscalfe::UniformScalarFESpace< SCALAR >::num_rsf_node_ {0}

private

Numbers of local shape functions for different types of entities

Definition at line 164 of file uniform_scalar_fe_space.h.

◆ num_rsf_quad_

template<typename SCALAR >

size_type lf::uscalfe::UniformScalarFESpace< SCALAR >::num_rsf_quad_ {0}

private

Definition at line 165 of file uniform_scalar_fe_space.h.

◆ num_rsf_tria_

template<typename SCALAR >

size_type lf::uscalfe::UniformScalarFESpace< SCALAR >::num_rsf_tria_ {0}

private

Definition at line 164 of file uniform_scalar_fe_space.h.

◆ rfs_edge_p_

template<typename SCALAR >

std::shared_ptr<const lf::fe::ScalarReferenceFiniteElement<SCALAR> > lf::uscalfe::UniformScalarFESpace< SCALAR >::rfs_edge_p_

private

Description of reference shape functions on an edge

Definition at line 159 of file uniform_scalar_fe_space.h.

◆ rfs_point_p_

template<typename SCALAR >

std::shared_ptr<const lf::fe::ScalarReferenceFiniteElement<SCALAR> > lf::uscalfe::UniformScalarFESpace< SCALAR >::rfs_point_p_

private

Description of refererence shape functions on a point

Definition at line 162 of file uniform_scalar_fe_space.h.

◆ rfs_quad_p_

template<typename SCALAR >

std::shared_ptr<const lf::fe::ScalarReferenceFiniteElement<SCALAR> > lf::uscalfe::UniformScalarFESpace< SCALAR >::rfs_quad_p_

private

Description of reference shape functions on quadrilateral cells

Definition at line 156 of file uniform_scalar_fe_space.h.

Referenced by lf::uscalfe::UniformScalarFESpace< SCALAR >::check_ptr().

◆ rfs_tria_p_

template<typename SCALAR >

std::shared_ptr<const lf::fe::ScalarReferenceFiniteElement<SCALAR> > lf::uscalfe::UniformScalarFESpace< SCALAR >::rfs_tria_p_

private

Description of reference shape functions on triangular cells

Definition at line 153 of file uniform_scalar_fe_space.h.

The documentation for this class was generated from the following file:

/home/nico/bildung/SemVI/thesis/lehrfempp/lib/lf/uscalfe/uniform_scalar_fe_space.h

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Related Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Scalar

Constructor & Destructor Documentation

◆ UniformScalarFESpace() [1/3]

◆ UniformScalarFESpace() [2/3]

◆ UniformScalarFESpace() [3/3]

◆ ~UniformScalarFESpace()

Member Function Documentation

◆ check_ptr()

◆ InitDofHandler()

◆ LocGlobMap()

◆ Mesh()

◆ NumRefShapeFunctions() [1/2]

◆ NumRefShapeFunctions() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ ShapeFunctionLayout() [1/2]

◆ ShapeFunctionLayout() [2/2]

Friends And Related Function Documentation

◆ operator<<()

◆ PrintInfo()

Level of output:

Member Data Documentation

◆ dofh_

◆ num_rsf_edge_

◆ num_rsf_node_

◆ num_rsf_quad_

◆ num_rsf_tria_

◆ rfs_edge_p_

◆ rfs_point_p_

◆ rfs_quad_p_

◆ rfs_tria_p_
